Solid-state batteries are one of the most anticipated technologies in the energy storage world. They’ve been “five years away” for what feels like a decade. But as of 2026, several manufacturers are in genuine early-stage commercial production, and the technology is finally worth understanding in concrete terms — not just as a future promise.
What Is a Solid-State Battery?

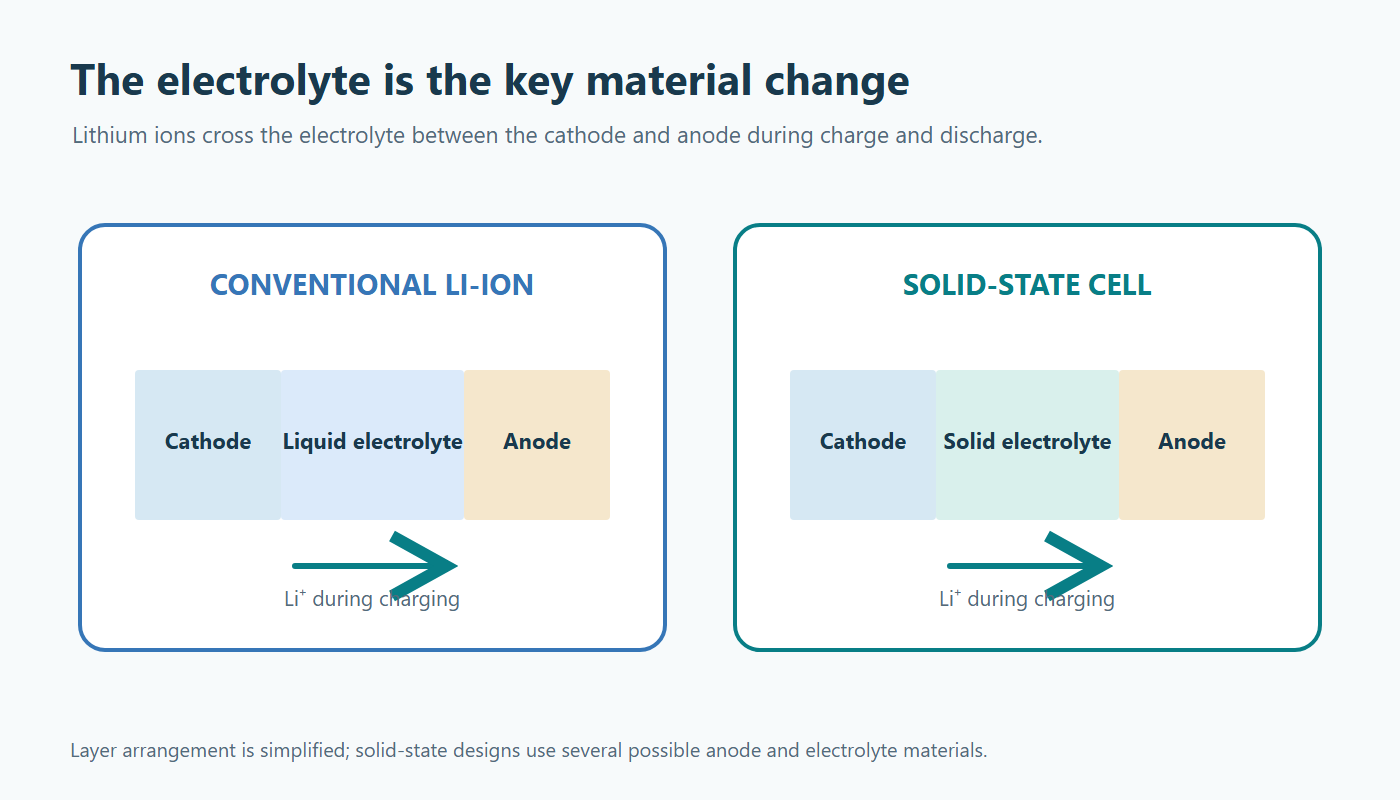

A conventional lithium-ion battery has three core components: an anode (typically graphite), a cathode (NMC, LFP, or similar), and a liquid electrolyte that lithium ions travel through during charging and discharging. That liquid electrolyte is the weak link: it’s flammable, it degrades over time, it requires a separator membrane to prevent short circuits, and it limits how thin and dense the cell can be made.
A solid-state battery replaces the liquid electrolyte with a solid material — typically a ceramic (like LLZO), glass (like lithium phosphorus oxynitride), or polymer. The anode and cathode remain similar, but the electrolyte between them is a thin, dense solid layer rather than a liquid-saturated separator.
How Solid-State Batteries Work
The fundamental electrochemistry is identical to conventional lithium-ion: during charging, lithium ions migrate from cathode to anode and are stored there; during discharge, they travel back through the electrolyte and release energy as electrons flow through the external circuit.
The difference is in how the ions travel. In a liquid electrolyte, ions move freely through solution. In a solid electrolyte, ions migrate through a crystalline or amorphous solid structure. This is harder to achieve efficiently — it took years of materials research to develop solid electrolytes with ionic conductivity high enough to be practical. The best current solid electrolytes approach the conductivity of liquid electrolytes, though ionic conductivity at low temperatures remains a challenge.
Solid-State vs Conventional Lithium-Ion: Key Differences
| Property | Solid-State | Conventional Li-Ion (NMC) |
|---|---|---|
| Electrolyte | Solid (ceramic/glass/polymer) | Liquid (organic solvent) |
| Energy density (theoretical) | 400–500+ Wh/kg | 150–250 Wh/kg |
| Energy density (current commercial) | ~300 Wh/kg (early cells) | 150–250 Wh/kg |
| Flammability | None (solid electrolyte) | Flammable liquid |
| Thermal runaway risk | Very low | Moderate (requires cooling) |
| Cycle life (projected) | 5,000–10,000+ | 500–2,000 (NMC) |
| Charge speed potential | Very fast (theoretical) | Limited by heat generation |
| Operating temperature range | Better at extremes | Degrades in heat/cold |
| Manufacturing cost | Very high (current) | Established, cost-optimized |
| Commercial availability | Limited (2026) | Widespread |
Advantages of Solid-State Batteries
- Higher energy density: By enabling the use of a lithium metal anode (instead of graphite) and eliminating the liquid electrolyte and separator, solid-state cells can store significantly more energy per unit weight and volume. Theoretical energy densities of 400–500 Wh/kg compare to 150–250 Wh/kg for today’s best lithium-ion cells.
- Safety: No flammable liquid electrolyte means no risk of electrolyte leakage, no need for cooling systems in EV packs, and dramatically reduced thermal runaway risk. This simplifies battery pack design and could reduce the weight and cost of thermal management systems.
- Longer cycle life: Lithium dendrite formation — the primary cause of lithium metal anode failure in conventional cells — is suppressed by a solid electrolyte that acts as a physical barrier. Solid-state cells are projected to achieve 5,000–10,000+ cycles, far exceeding conventional lithium-ion.
- Wider temperature range: Solid electrolytes are more stable at temperature extremes than liquid electrolytes, potentially enabling better cold-weather EV performance and eliminating the need for liquid thermal management in some applications.
Current Challenges
- Manufacturing cost and scalability: Producing thin, uniform, defect-free solid electrolyte layers at scale is extremely difficult. Current solid-state cells cost many times more than conventional lithium-ion to manufacture.
- Interface resistance: The interface between the solid electrolyte and the electrode materials can have high resistance, limiting power delivery and charging speed. This is an active area of research.
- Volume expansion: During cycling, electrode materials expand and contract. With a rigid solid electrolyte, this mechanical stress can crack the electrolyte layer, causing cell failure. Engineers are working on flexible solid electrolyte materials and cell designs that accommodate this.
- Low-temperature performance: Ionic conductivity in solid electrolytes drops more steeply at low temperatures than in liquid electrolytes, which remains a challenge for cold-weather EV applications.
Who Is Building Solid-State Batteries?
- Toyota: Has been the most aggressive automotive manufacturer in solid-state development. Toyota announced plans to begin limited solid-state EV production in the mid-2020s. They use a sulfide-based solid electrolyte and have reportedly solved several key manufacturing challenges.
- QuantumScape (backed by Volkswagen): Uses a ceramic solid electrolyte. Has published impressive cell-level test data. Working toward automotive-scale production.
- Samsung SDI: Has demonstrated solid-state prototype cells with 800+ Wh/L energy density. Targeting automotive production in the late 2020s.
- Solid Power (backed by BMW and Ford): Using a sulfide-based electrolyte. Has delivered cells to automotive partners for testing.
- ProLogium: Taiwan-based, has built a Gigafactory in France and is delivering cells to automotive customers.
When Will Solid-State Batteries Reach Consumer Products?
As of 2026, solid-state batteries are in limited early commercial production for premium EVs. They are not yet in smartphones, laptops, or portable electronics at commercial scale. The realistic timeline:
- 2026–2028: Limited production in premium EVs (Toyota, potentially others). Very high cost — expect these to be in flagship vehicles only.
- 2028–2032: Broader EV adoption as manufacturing scales and costs fall. Possible appearance in premium consumer electronics.
- 2032+: Mainstream consumer electronics adoption depends on manufacturing cost reaching parity with conventional lithium-ion.
The key bottleneck is manufacturing cost, not the underlying technology. The chemistry works. Making it in high volume at competitive cost remains the challenge.
Frequently Asked Questions
Are solid-state batteries available to buy now?
Not in consumer electronics as of 2026. Limited solid-state cells are entering production for specialty and early EV applications. For phones, laptops, and power banks, conventional lithium-ion (including LiFePO4) remains the available technology.
Will solid-state batteries catch fire?
Solid-state batteries are far less prone to thermal runaway than conventional lithium-ion because they have no flammable liquid electrolyte. They can still fail under extreme abuse conditions, but the failure mode is different and generally less severe than the thermal runaway seen in liquid-electrolyte cells.
Will solid-state batteries replace lithium-ion?
Eventually, yes — for most high-performance applications. The transition will take 10–20 years as manufacturing scales. Conventional lithium-ion (particularly LiFePO4 for stationary storage) will remain cost-competitive for lower-energy-density applications well into the 2030s.
How much better is the range of an EV with solid-state batteries?
Early solid-state EV batteries are targeting 20–40% range improvement over current NMC lithium-ion at the pack level, due to higher energy density and the ability to eliminate or reduce heavy thermal management systems. Real-world improvements will vary by vehicle and manufacturer.
